Carbon Raiser-LUOYANG MAGMA NEW MATERIAL CO., LTD.

Carbon Raiser

Carbon Raiser is important additives in iron steel industry and also for foundry. Carbon raiser can be classified as according to applications: Ductile Iron carbon raiser, grey cast iron carbon raiser, steel cast carbon raiser and carbon raiser for special steel.

Send Email Call Us

Introduction Industry Video Send Message

Introduction

Application and requirement for different type:

1.In Ductile iron, Low S, High C Graphitized carbon raiser is used: S:≤0.1% or S:≤0.05%

2.Grey cast iron requirement mainly: S:≤0.5%

3.In steel plant, many kinds of carbon raiser are used such as Calcined Coal, Graphite granular, Graphite ball or Natual graphite pieces with C:75%-99%

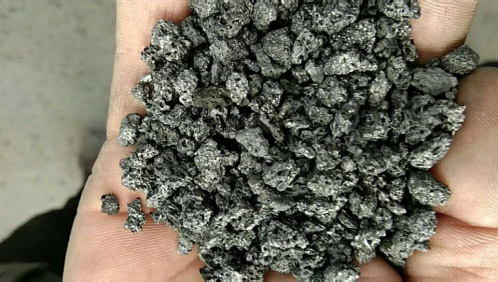

Graphitized Petro Coke(GPC) is best carbon raiser. It widely used in Iron&steel and foundry. It can increase the nucleation ability of graphite in hot metal, increase the ductile quantity, optimize the micro structure of grey casting iron also.

GPC	F.C.	Ash	Volatiles	S	Moisture	N	H
	98%min	1%max	1%max	0.05%max	0.5%max	0.03%,max	0.01%,max
	98.5%min	0.7%max	0.8%,max	0.05%,max	0.5%max	0.03%,max	0.01%,max
Size:1-3mm,1-5mm,0.5-6mm,1-10mm or as per customers’ request

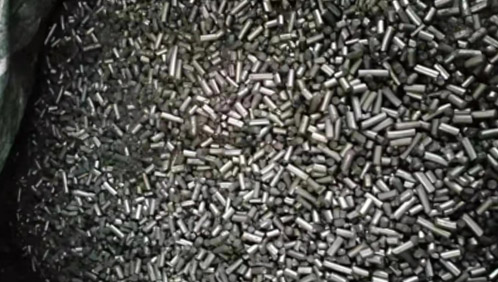

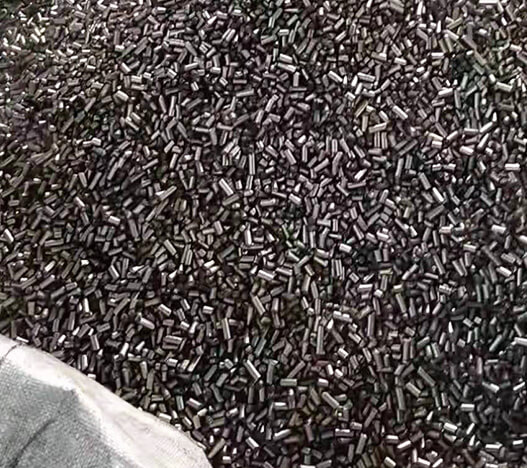

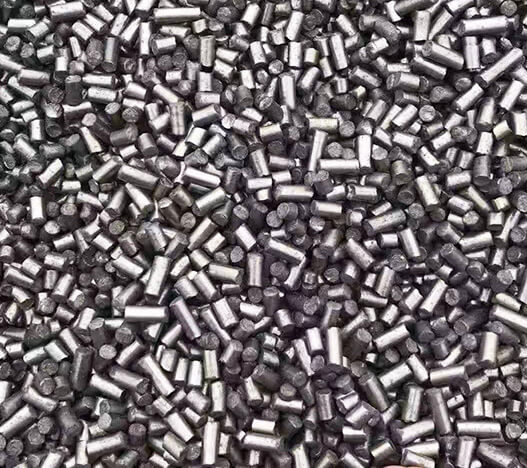

Cylindrical graphite Carbon raiser

Cylindrical graphite	F.C.	Ash	Volatiles	S	Moisture	N	H
	95%min	2.5%max	2.2%max	0.03%max	1%max	0.03%,max	0.01%,max

	95%min	2.5%max	2.2%max	0.05%max	1%max	0.03%,max	0.01%,max

	92%min	5.5%max	2.2%ma	0.03%max	1%max	0.03%,max	0.01%,max

	92%min	5.5%max	2.2%ma	0.05%max	1%max	0.03%,max	0.01%,max

Size:Dia.5mm, length 3-15mm

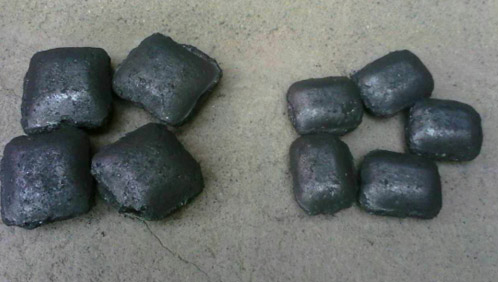

Graphite Ball Carbon raiser

Graphite Ball	F.C.	Ash	Volatiles	S	Moisture	N	H
	80%min	13.5%max	4.5%max	0.1%max	2%max	0.03%,max	0.01%,max

	80%min	13.5%max	4.5%max	0.3%max	2%max	0.03%,max	0.01%,max

	75%min	19.5%max	4.5%max	0.1%max	2%max	0.03%,max	0.01%,max

	75%min	19.5%max	4.5%max	0.3%max	2%max	0.03%,max	0.01%,max

Size: 10-30mm,10-50mm
